E2 Hinge Hardware

The E2 series by Centor is designed for light-weight interior and exterior applications making it a perfect solution for folding windows or light-weight doors where heavier grade hardware is not necessary.

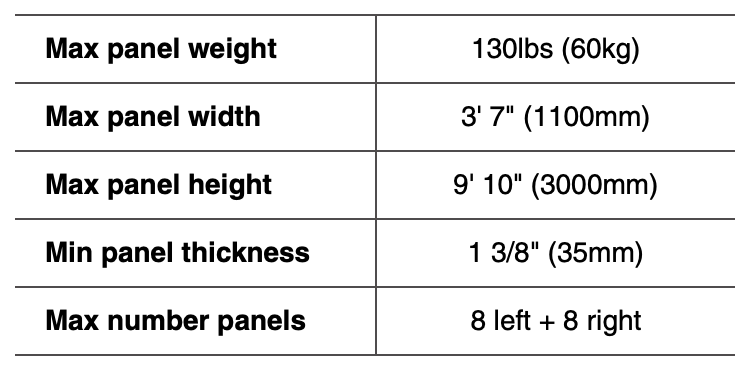

Dimensions are intended as a guide only.
Calculated weight checks should be performed to ensure doors built to maximum
height and widths do not exceed maximum weight.

E2+ Brochure with architectural details
E2+ Door Calculator
E2+ Installation Instructions


FEATURES INCLUDE:

• Hardware for top-hung bifold systems.
• Components for outswing or inswing applications.
• Can be used for timber, aluminum, or composite panels.
• Cycle tested to the equivalent of opening and closing panels.
• Compatible with Centor Dropbolts or Twinpoint Locking systems.
• 10-year warranty

PRODUCT CODES & DESCRIPTIONS

	Part #: E2CPS Description: Top and bottom pivot hinges that install into the top and bottom tracks to support the pivot panel at the left and/or right side jamb location. Pivot sets include hardware for one (1) panel. Part #: E2WPS Description: Wall pivots install into the jamb and connect with a hinge at mid-levels of the pivot side panel(s). Wall pivots do not carry weight but do provide needed support against deflection. Kit includes one (1) wall pivot.
	Part #: (a) E2CICS Description: E2 concealed carriers kits includes one (1) top roller, one (1) middle flat hinge, and one (1) bottom support roller. Part #: (b) E2H Description: Single flat hinge with handle
	Part #: (a) E2RCS (b) E2LCS Description: End carrier sets are used for even-numbered configurations and fastens to the "end" panel. For example, a configuration with 2 panels that stack to the left jamb would have a E2RCS carrier on the right panel. NOTE: There is also an E2CMC (meeting carrier) that is designed when two end-panels meet in the middle.
	Part #: (a) E2HHS Description: Half offset hinge sets include one (1) top hinge, one (1) middle hinge with a pull handle, and one (1) bottom hinge. Part #: (b) E2HHNHS Description: Half offset hinge sets include one (1) top hinge, one (1) middle hinge without a pull handle, and one (1) bottom hinge. Part #: (c) E2HH Description: Single half offset hinge
	Part #: (a) E2HS Description: Flat hinge set includes one (1) top hinge, one (1) middle hinge with pull handle, and one (1) bottom hinge. Part #: (b) E2HNHS Description: Flat hinge set includes one (1) top hinge, one (1) middle hinge without pull handle, and one (1) bottom hinge. Part #: (c) E2H Description: Single flat hinge
	Part #: E2EH Description: Independent external pull handle
