E3 Hardware

The E3 series is the most commonly used hardware in the folding door and window market. Although considered to be mid-grade within the Centor® line, it boasts a 250lb weight capacity per panel, making it extremely robust and useful across a wide range of applications.

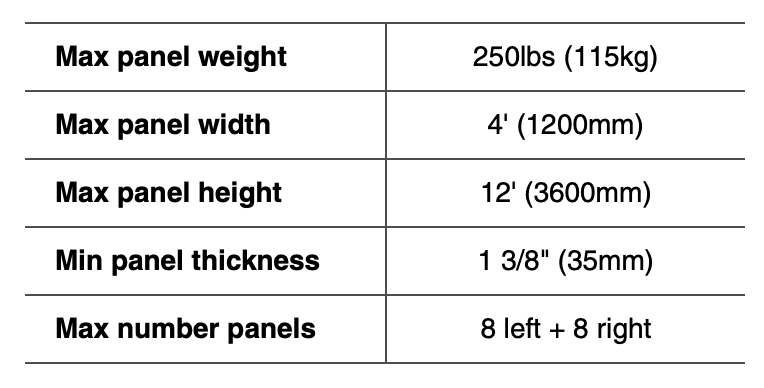

Dimensions are intended as a guide only.
Calculated weight checks should be performed to ensure doors built to maximum
height and widths do not exceed maximum weight.

E3 Brochure with architectural details
E3 Door Calculator
E3 Installation Instructions


FEATURES INCLUDE:

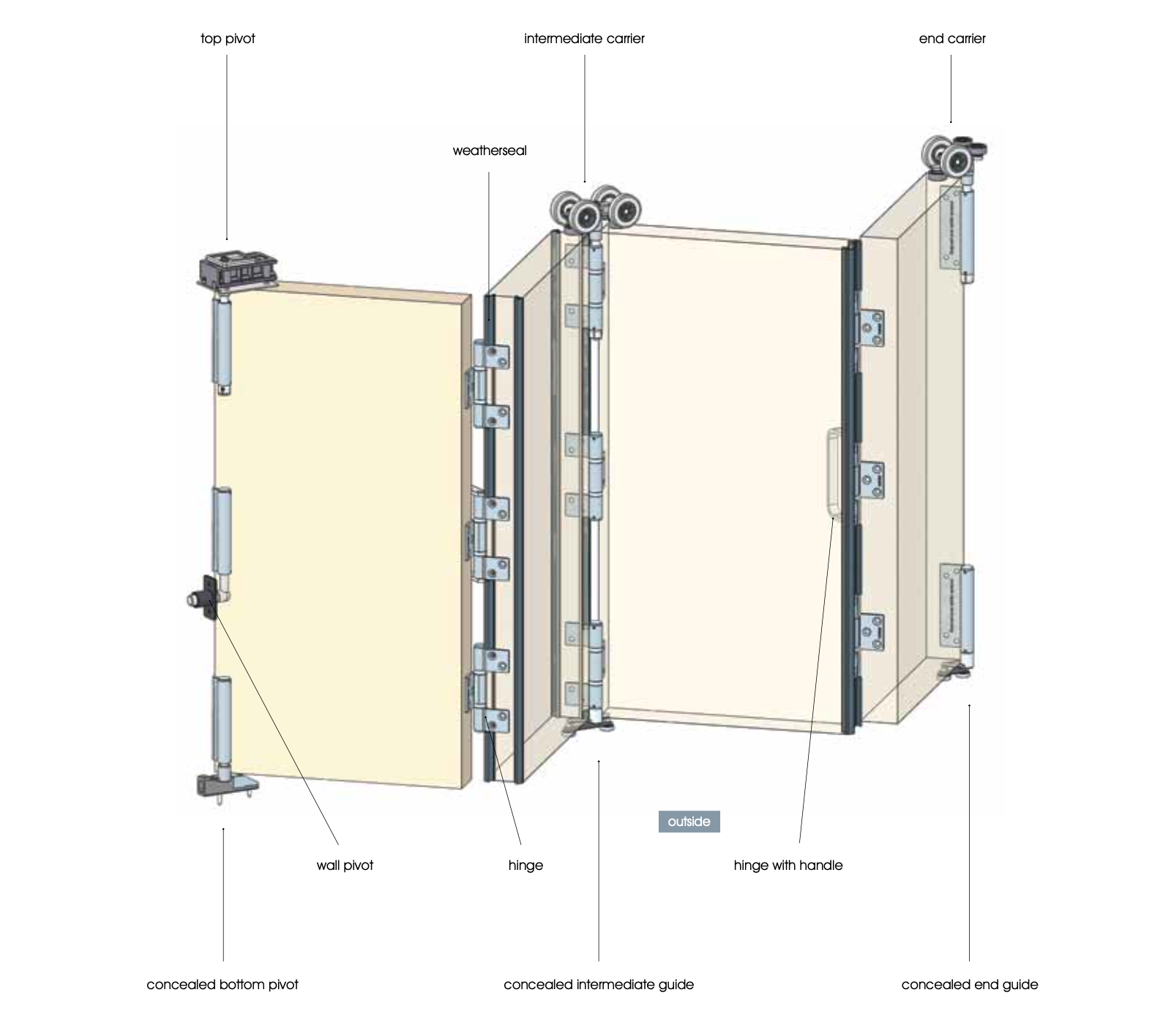

• Hardware for top-hung bifold systems.
• Components for outswing or inswing applications.
• Can be used for timber, aluminum, or composite panels.
• Cycle tested to the equivalent of opening and closing panels.
• Compatible with Centor Dropbolts or Twinpoint Locking systems.
• 10-year warranty

PRODUCT CODES & DESCRIPTIONS

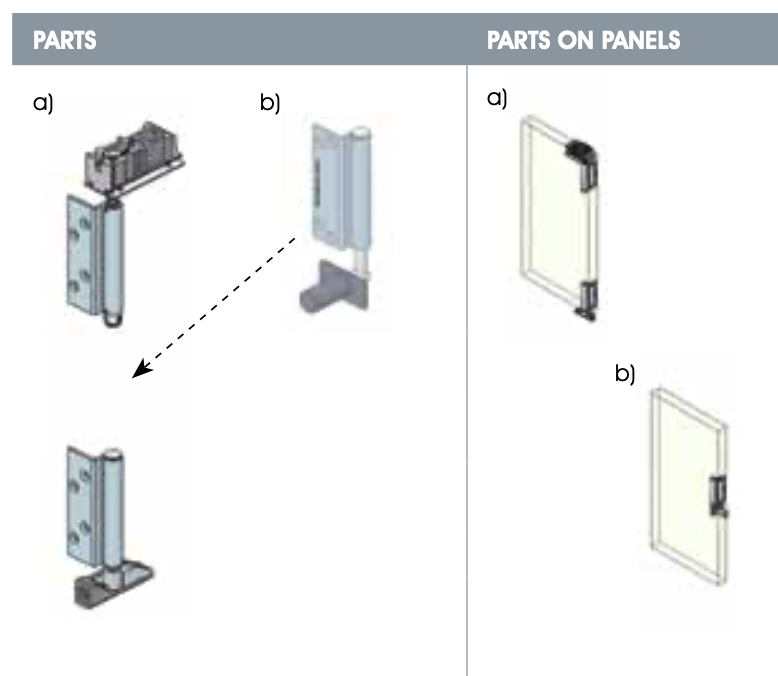

	Part #: (a) E3CPS Description: Top and bottom pivot hinges that install into the top and bottom tracks to support the pivot panel at the left and/or right side jamb location. Pivot sets include hardware for one (1) panel. Part #: (b) E3WPS Description: Wall pivots install into the jamb and connect with a hinge at mid-levels of the pivot side panel(s). Wall pivots do not carry weight but do provide needed support against deflection. Kit includes one (1) wall pivot.

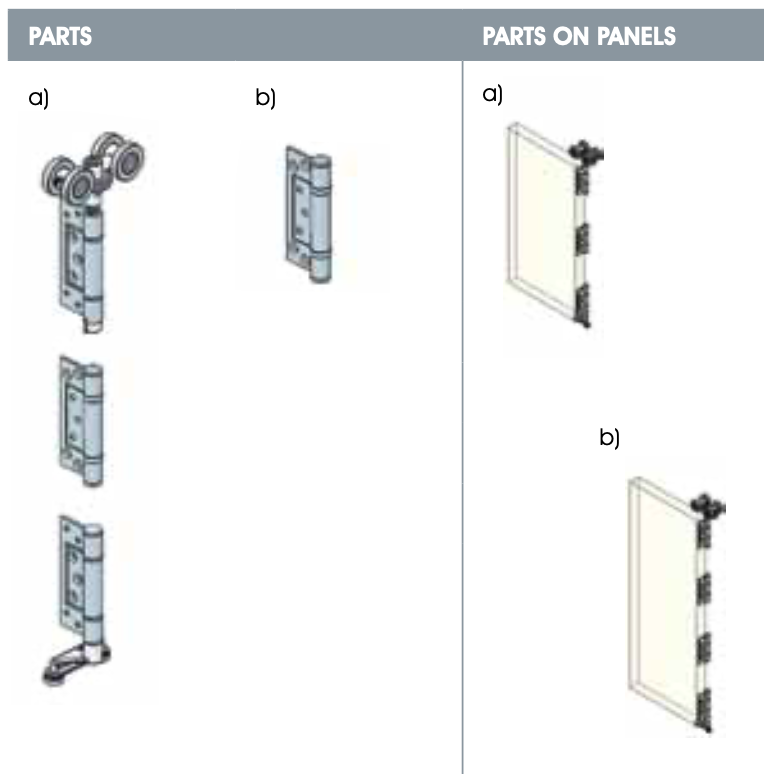

	Part #: (a) E3CICS Description: E3 concealed carriers kits includes one (1) top roller, one (1) middle flat hinge, and one (1) bottom support roller. Part #: (b) E3H Description: Single flat hinge with handle

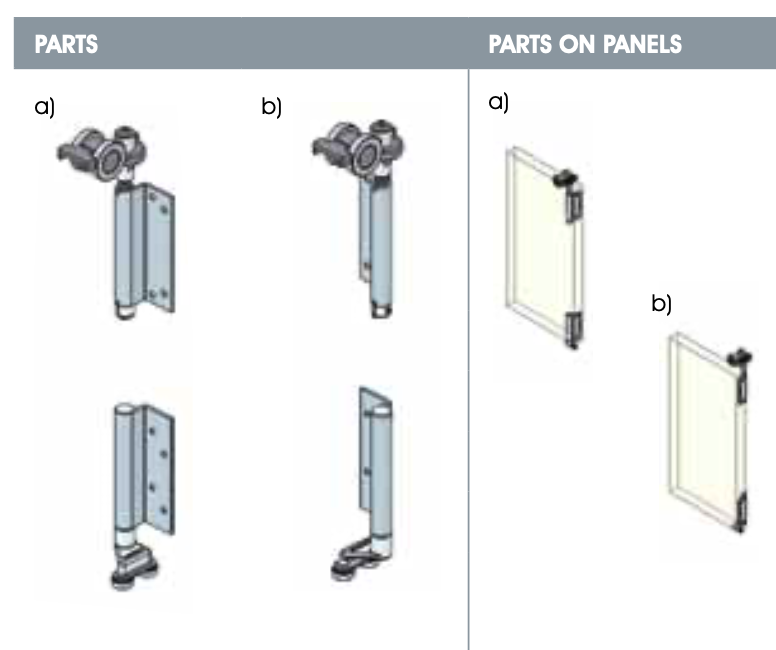

	Part #: (a) E3RCS (b) E3LCS Description: End carrier sets are used for even-numbered configurations and fastens to the "end" side panel. For example, a configuration with 2 panels left and 2 panels right would have both a left and right end carrier supporting both middle panels that close into each other.

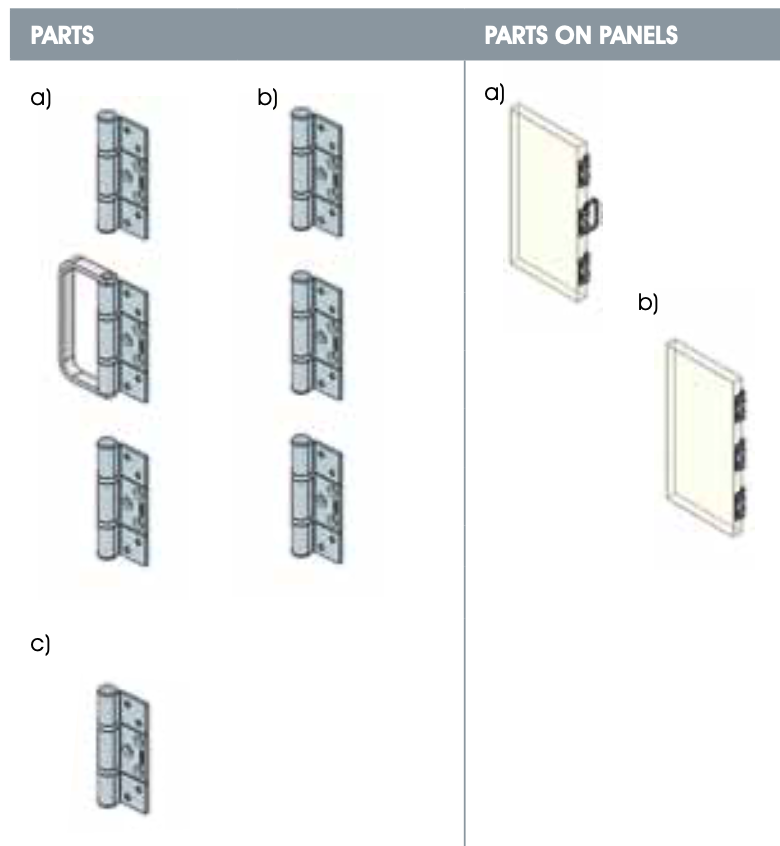

	Part #: (a) E3HHS Description: Half offset hinge sets include one (1) top hinge, one (1) middle hinge with a pull handle, and one (1) bottom hinge. Part #: (b) E3HHNHS Description: Half offset hinge sets include one (1) top hinge, one (1) middle hinge without a pull handle, and one (1) bottom hinge. Part #: (c) E3HH Description: Single half offset hinge

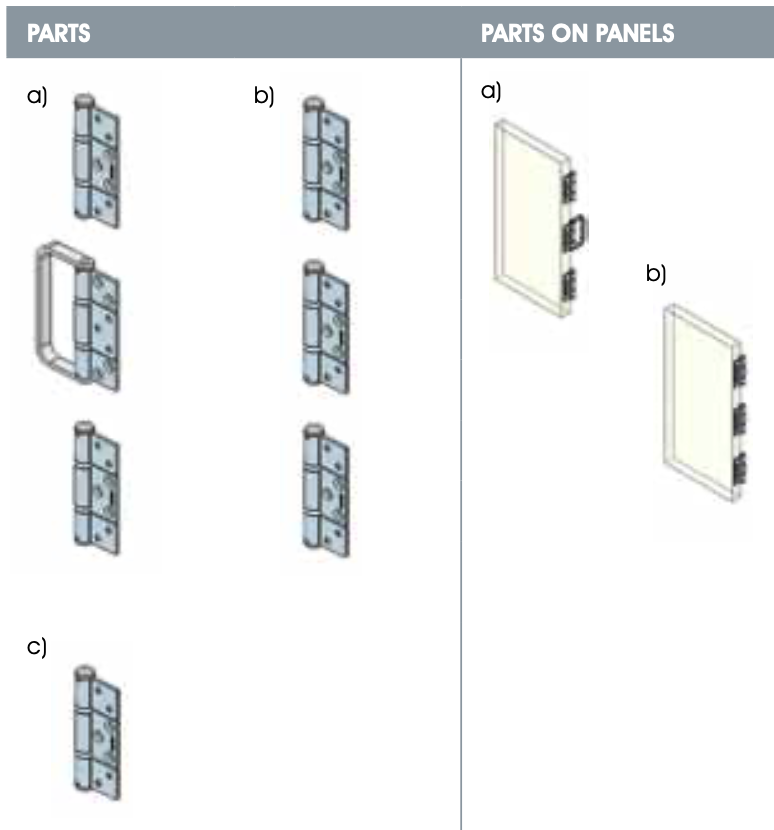

	Part #: (a) E3HS Description: Flat hinge set includes one (1) top hinge, one (1) middle hinge with pull handle, and one (1) bottom hinge. Part #: (b) E3HNHS Description: Flat hinge set includes one (1) top hinge, one (1) middle hinge without pull handle, and one (1) bottom hinge. Part #: (c) E3H Description: Single flat hinge

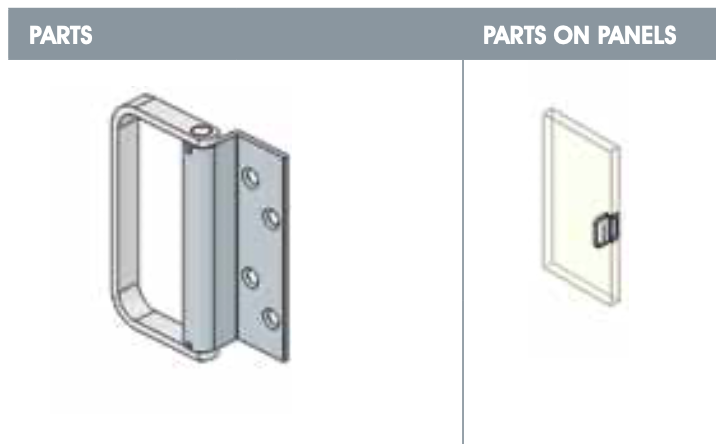

	Part #: E3EH Description: Independent external pull handle
